SPECIFICATIONS

Brand Name: NoEnName_Null

Core Components: Engine, Gear

Hign-concerned Chemical: None

Hover time: 18min (no load)

Machinery Test Report: Provided

Maximum effective takeoff weight: 26kg

Maximum flight speed: 10M/s

Medicine box capacity: 10.5L

Obstacle avoidance range: 2 ~ 20m

Origin: Mainland China

Place of Origin: Shandong, China

Product Name: ZM410 UAV

Type: Hand Tool Parts

UNIQUE SELLING POINT: High operating efficiency

Video outgoing-inspection: Provided

Warranty: 1.5 years

Weight (KG): 12

Wheelbase: 1495mm

Work efficiency: 80acres / hour

Working height: 1.5m ~ 3.5m

Hello, dear buyer, welcome to our store. If you need other models of this product, please contact me, and I will send you the product link for purchase! Email: Kaiselin3589@163.com whats APP: + 8618973059861

Product Paramenters



Parameters Of Agricultural Sprayer Remote Control Sprayer Agricultural Sprayer Drone Uav Drone Crop

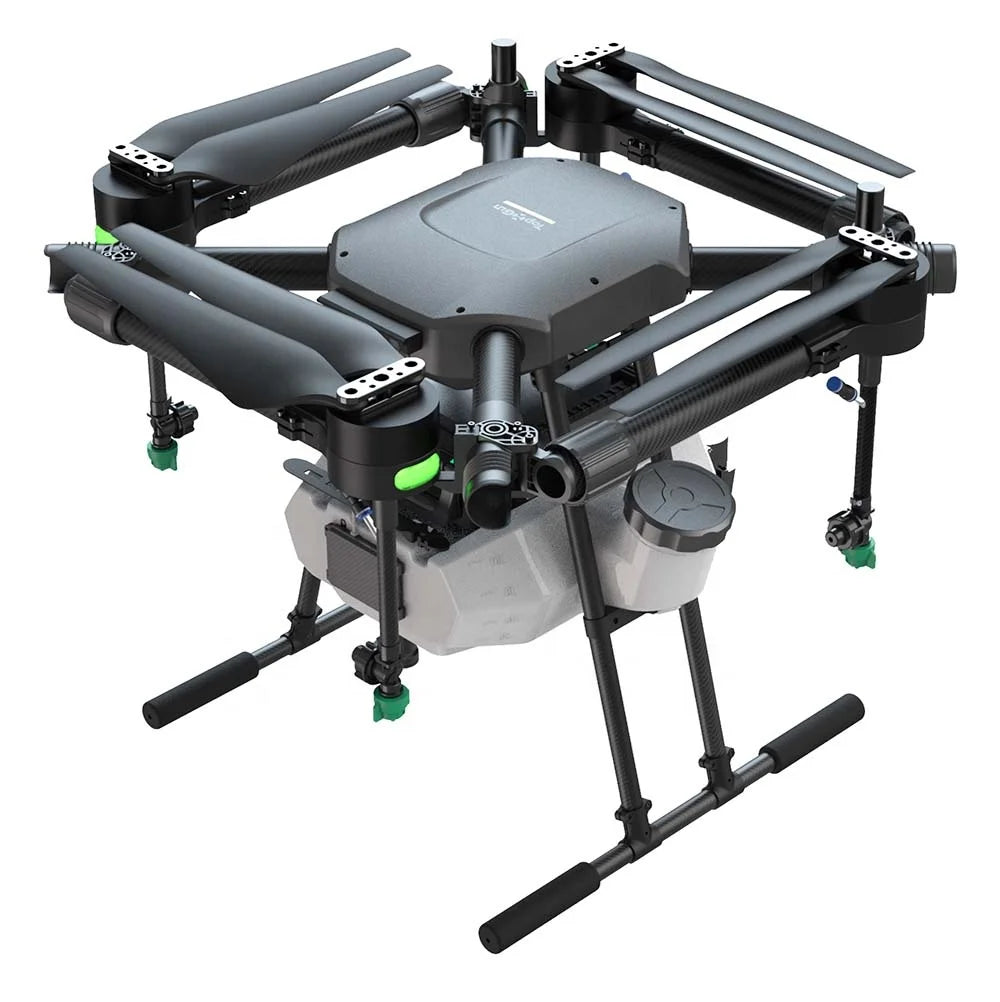

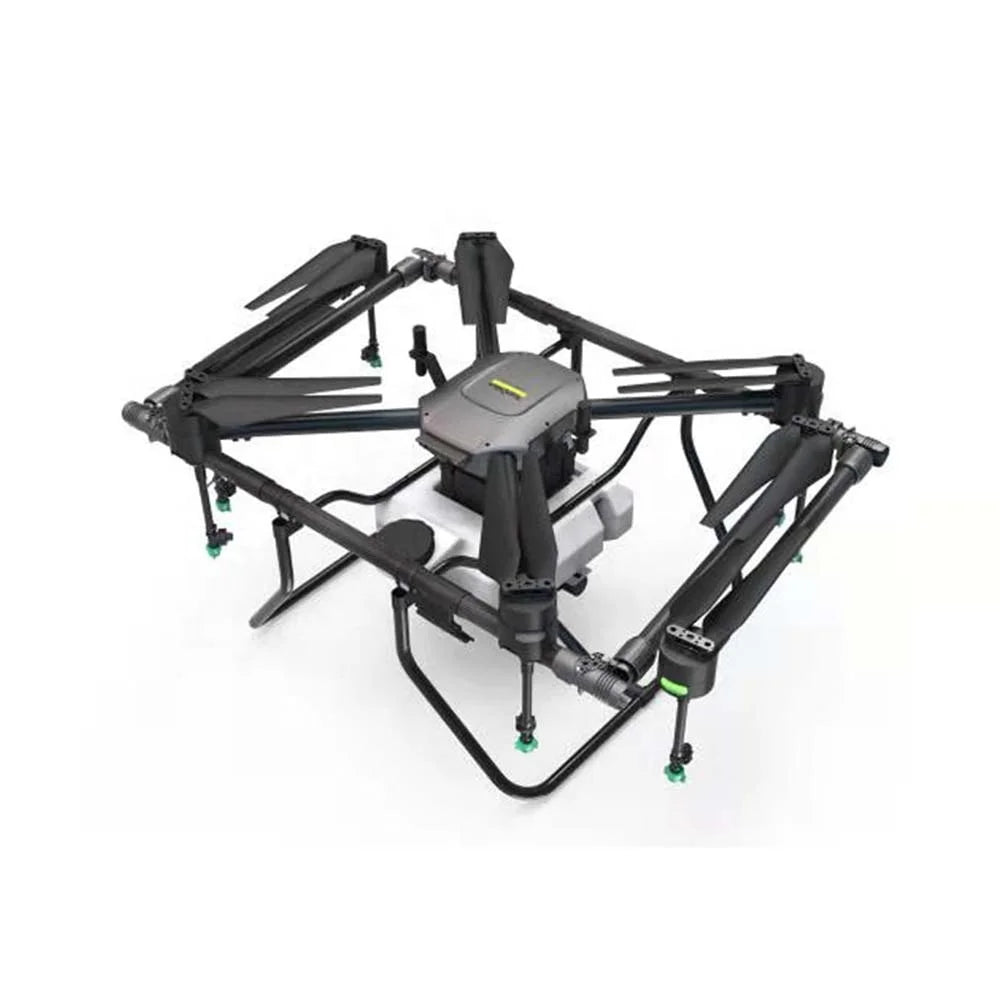

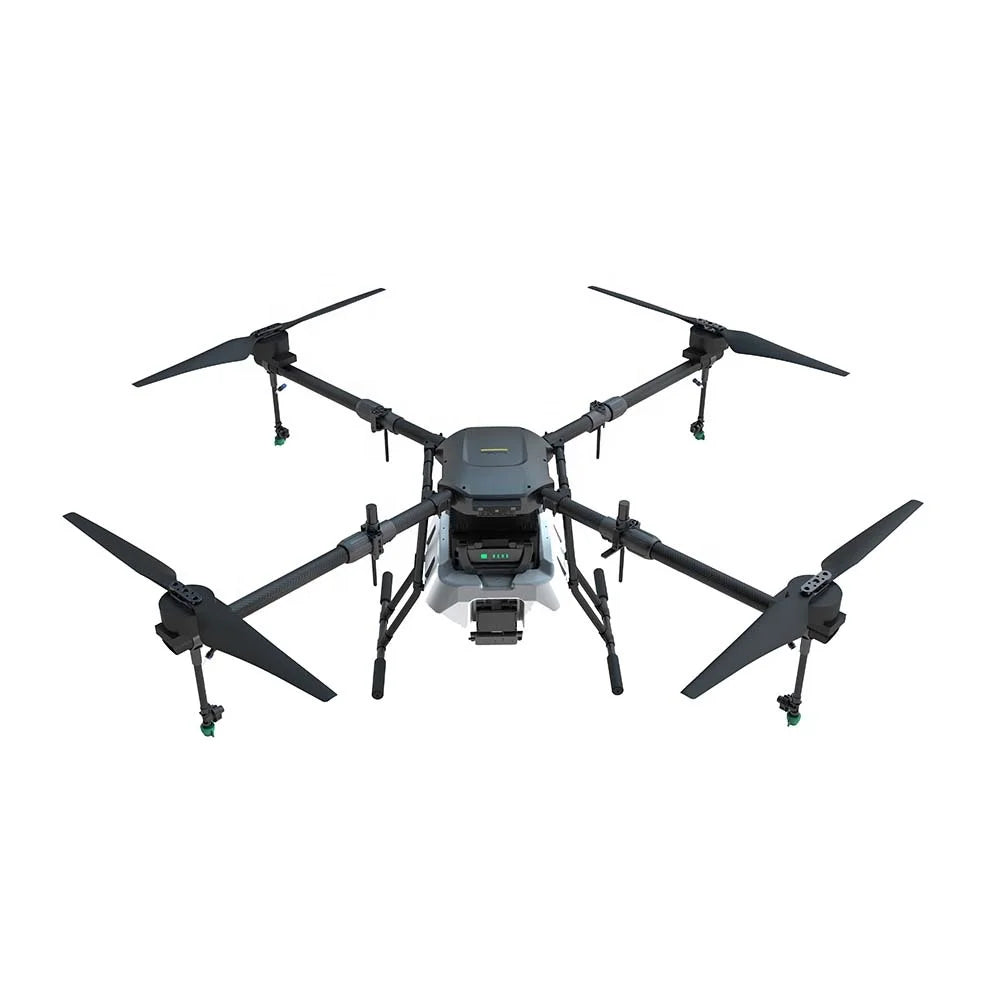

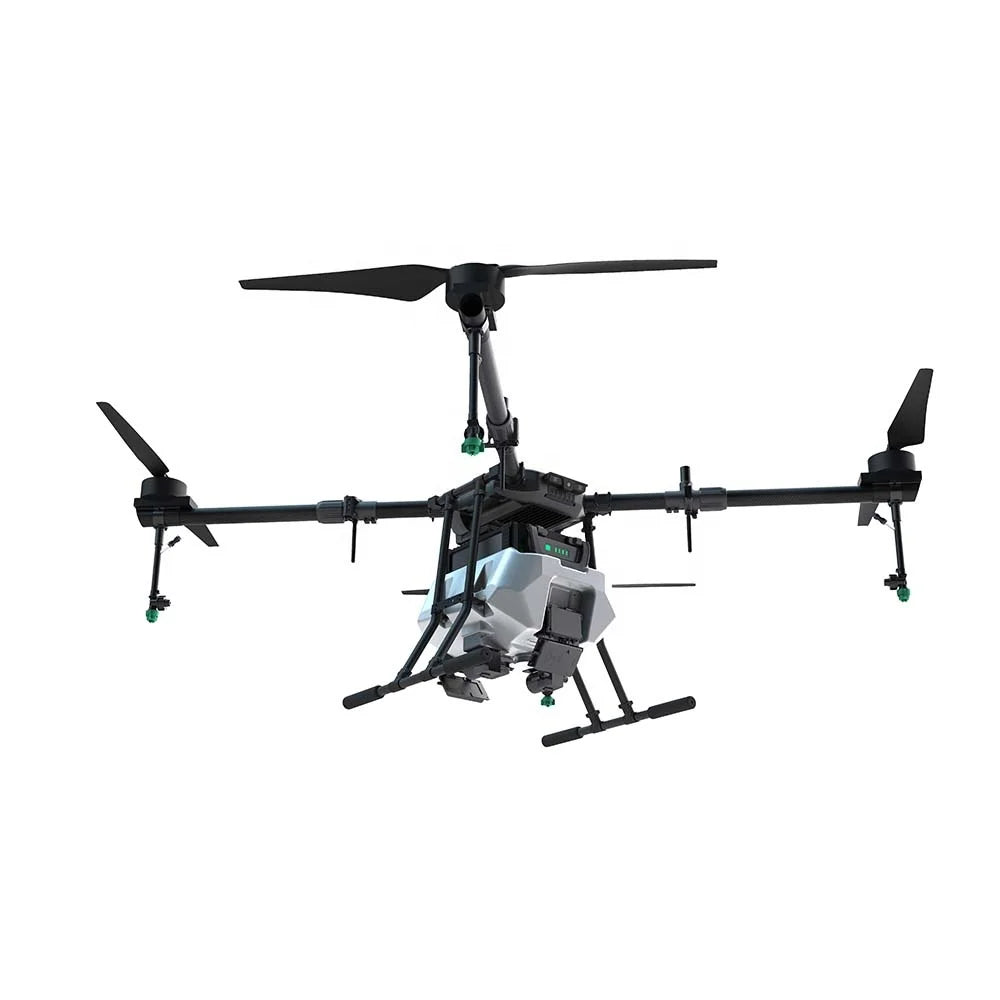

ZM410 plant protection drone technical parameters: Wheelbase 1495mm (four axes) Dimensions Expand: 1152*1152*630mm Folding: 666.4*666.4*630mm Spray width 4 ~ 6m (depending on different crops) Medicine box capacity 10.5L Operating efficiency 80 acres / hour Machine weight 11.6kg (without battery) Maximum effective takeoff weight 26k Power battery 12S 14000mAh Nozzle type High pressure fan nozzle Atomized particles 130~250 μm (XR11001VS) Flight parameter Hover time 18min (no load) 10min (full load) Working height 1.5m ~ 3.5m Large flight angle 25° (attitude mode) Large flight speed 10m/s (GPS mode) Horizontal positioning accuracy Horizontal ± 1.0m Vertical ± 0.5m Level ± 10cm Vertical ±10cm (using RTK) Vertical ±0.1m (with radar enabled) Imitation ground radar ranging accuracy 0.02m Setting range 1 ~ 10m Obstacle avoidance range 2 ~ 20m
